MP340

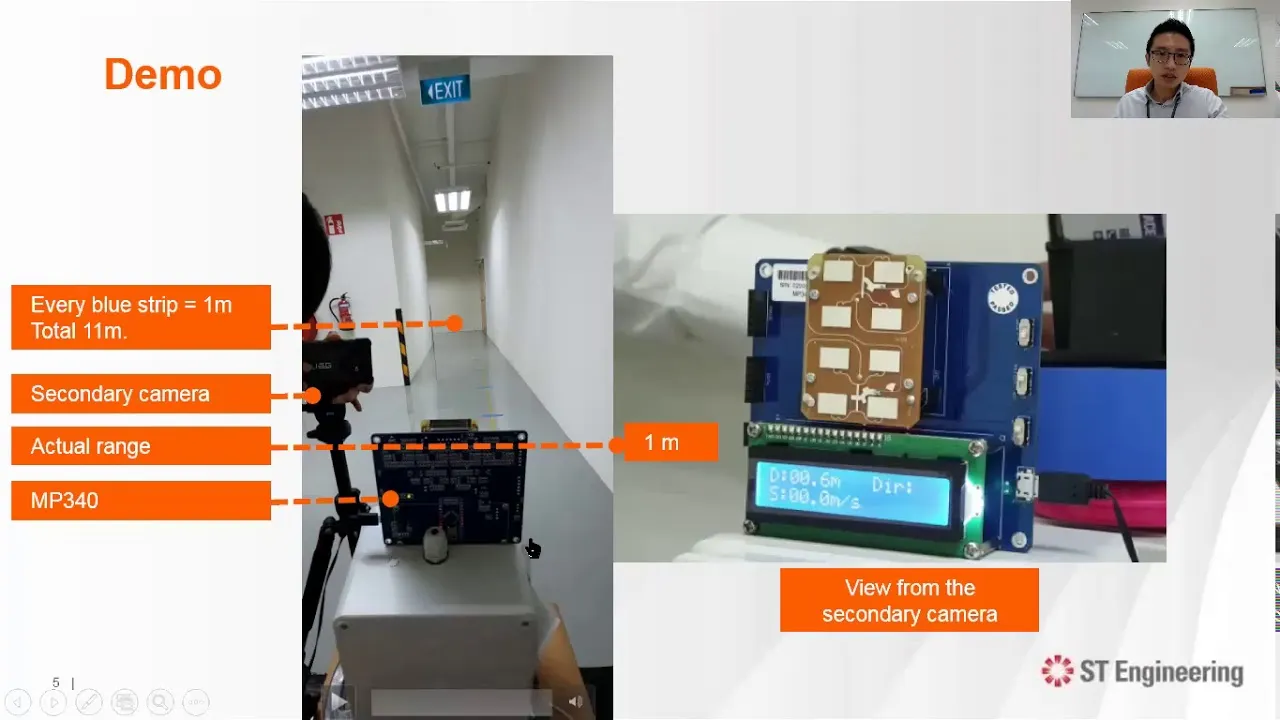

The MP340 is designed to plug and play for quick evaluation of FSK radar ranging for your end application, speeding up your product development time! It takes care of your signal processing for speed measurement, direction discrimination and ranging for moving targets in its field of view, instantaneously displaying these 3 parameters clearly on an in-built LCD panel. For more in-depth knowledge of the sensor's signals, the MP340's analog, digital, UART or USB interfaces will provide the additional information that you require for better assessment and evaluation. Come by our Youtube channel to view a demo of its capabilities! https://youtu.be/vdpKgoralQQ
Recommended for new designs
Product Details
  • FCC compliance: Yes
  • EN Compliance: Yes
  • Length : 100 mm
  • Width : 90 mm
  • Height : 36 mm
  • Weight : 95 g
Applications
Security, Traffic, Lighting, Touch-free, Sports

Key Uses

Motion Detection
Velocity Measurement
Distance Measurement
Direction Discrimination
Angle Measurement
Presence Detection
