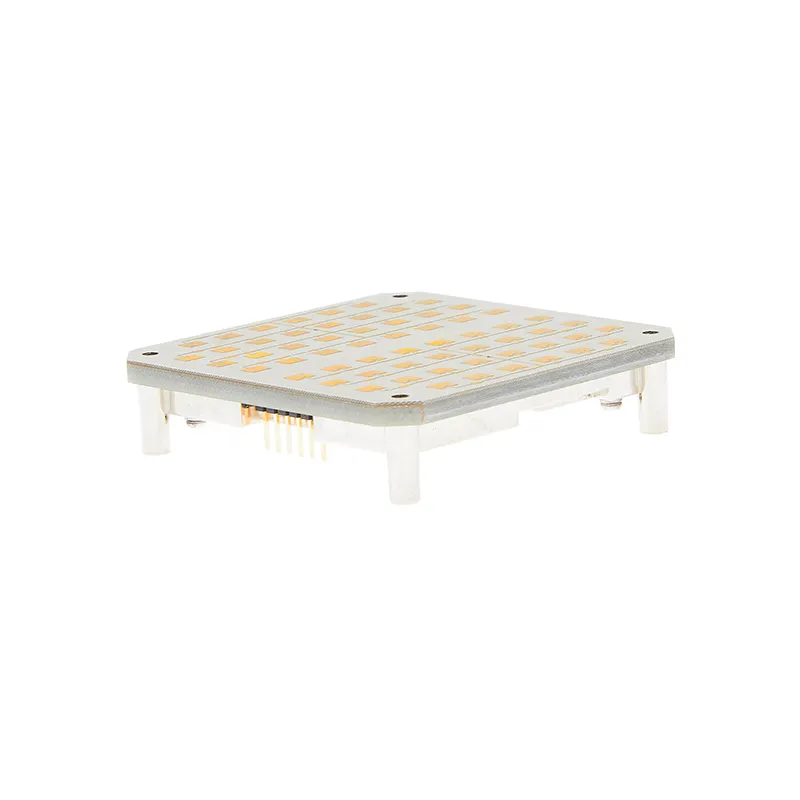

The AP82 sensor belongs to the AP8-series K-band sensors designed for general mid-range applications. The design optimizes range, detection angle and cost in a low profile package. Designed with dual-channels, the AP8-series sensors are able to discriminate target direction. The added amplification in the receiver chain gives it 20 to 30% more range as compared to the AP81 or AP83. Typical applications include radar speed signs, traffic monitoring, sports radars. security detectors, vehicle blind-spot detectors and other applications that require general motion detection with an extended range.
Recommended for new designs
Product Details
  • Typical Power Consumption : 300 mW
  • Antenna Beamwidth : 24° x 50°
  • FCC compliance: Yes
  • EN Compliance: Yes
  • Length : 38.4 mm
  • Width : 31.6 mm
  • Height : 11.5 mm
  • Weight : 5 g
Traffic, Sports, Automotive

Key Uses

Motion Detection
Velocity Measurement
Distance Measurement
Direction Discrimination
Angle Measurement
Presence Detection
Data Sheets
AP82 Information
