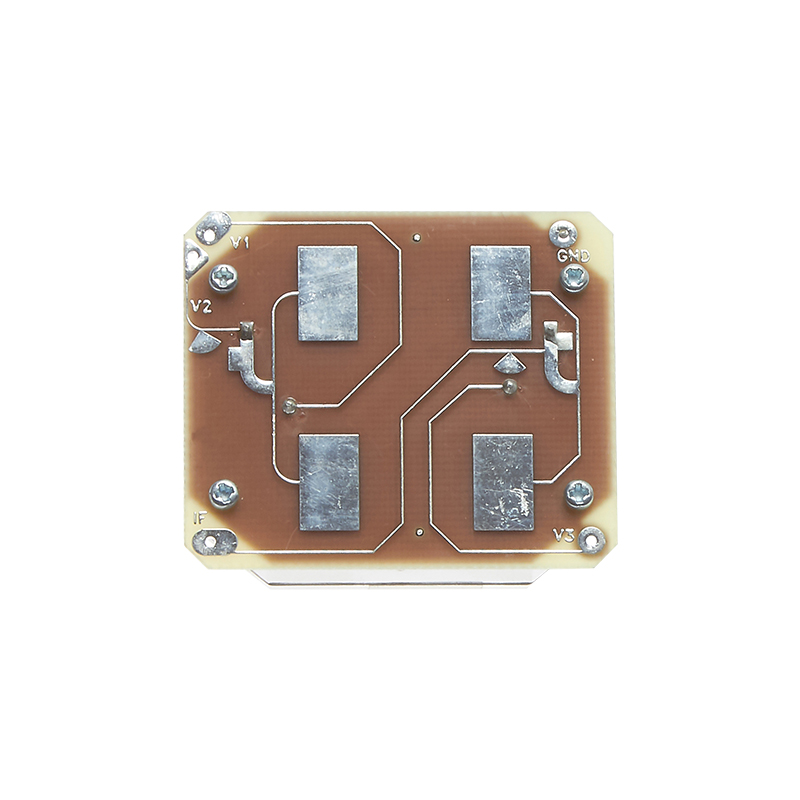

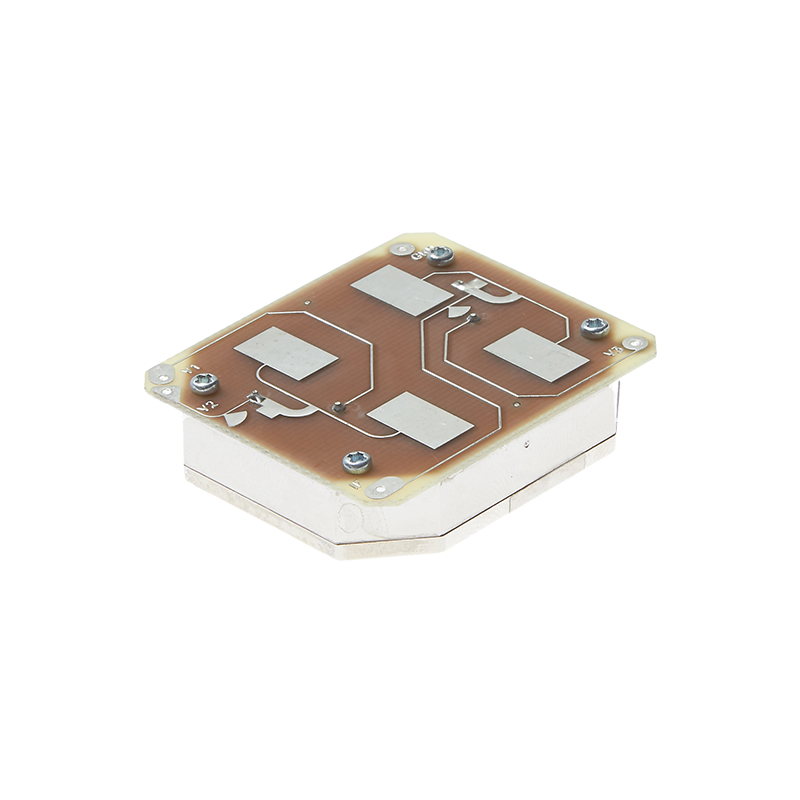

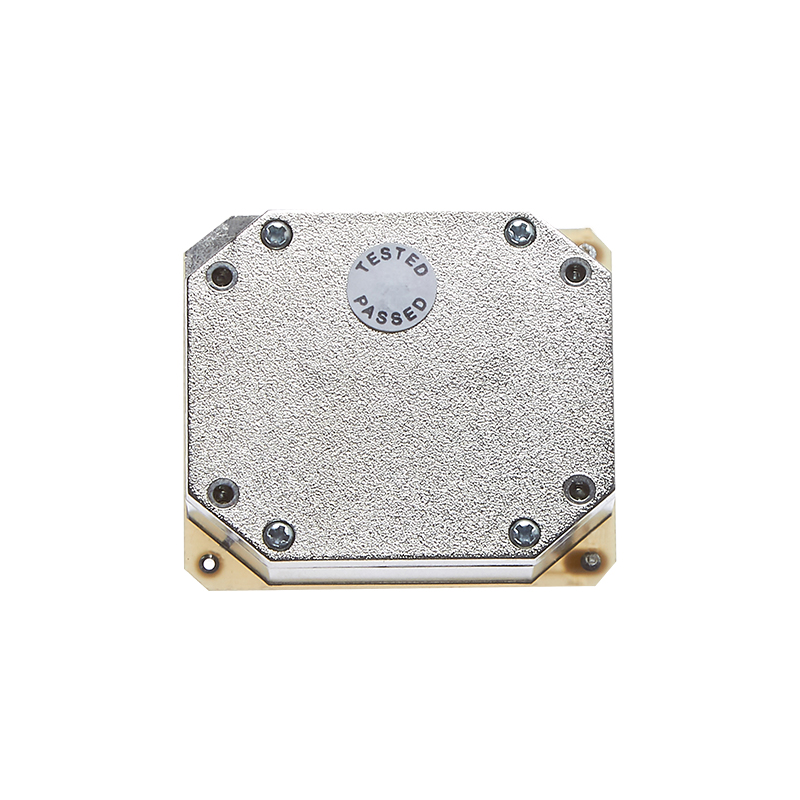

The HB210 sensor belongs to the HB1 series that operates over various narrow bands in the X-band. Its design ensures low emissions while providing excellent range, and angular coverage in a compact package. It is ideal for applications in security alarms, auto-door, motion-triggered lighting and other applications that require general motion detection.
Product Details
  • Typical Power Consumption : 150 mW
  • Antenna Beamwidth : 80° x 40°
  • FCC compliance: Yes
  • EN Compliance: Yes
  • Length : 46.5 mm
  • Width : 40 mm
  • Height : 16.5 mm
  • Weight : 19 g

Key Uses

Motion Detection
Velocity Measurement
Distance Measurement
Direction Discrimination
Angle Measurement
Presence Detection
